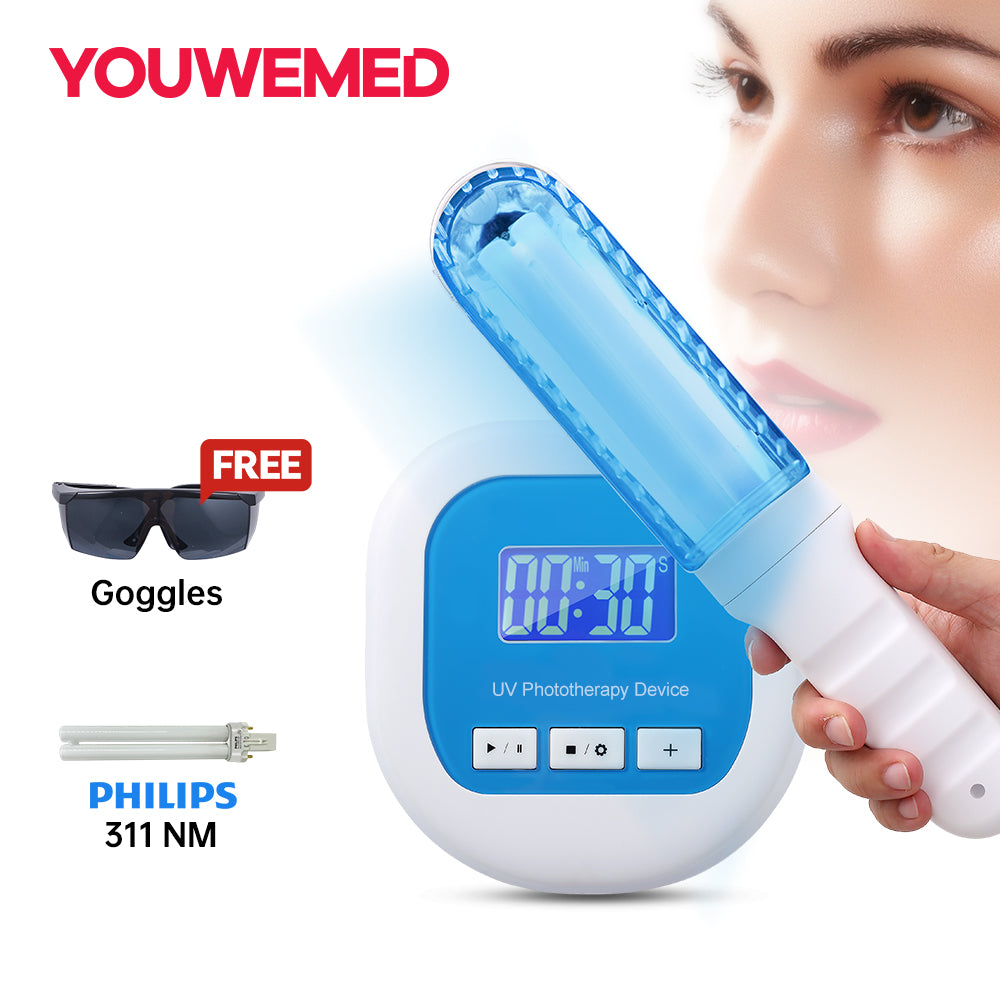

BU-1 311nm UVB Phototherapy Lamp Ultraviolet Disinfection UVB Lamp for Vitiligo, Dermatitis

Item

Main Technical Data

Indications

for the treatment of vitiligo, psoriasis, pityriasis rosea, eczema.

Contraindications

l Xeroderma pigmentosum.

l Photosensitivity disorders (including lupus, porphyria, etc.)

l Basal cell nevus syndrome.

l Photosensitizing medications with an action spectrum within the wavelengths applied by the device.

Model

BU-1

Structure

Specifications

Philips special UV lamp as the light source

Imported reflector, high intensity and effective treatment

Microcontroller, accurate treatment time setup

Separate design, easy operation

Special comb for scalp treatment

Safety Classification

I

Operation Mode

Continuous operation

Voltage

AC230V±10%  50HZ±2%     AC120V±10%  60HZ±2%

Rated Power

50VA

Working Environment

Temperature：-5℃～+40℃

Relative Humidity：≤85%

Atmosphere：700～1060hpa

Transportation and Storage Environment

Temperature：-40～55℃

Relative Humidity：≤95%

Atmosphere：500～1060hpa

Product Dimension

Main body：  300mm×55mm×45mm

Controller：150mm×140mm×45mm

Packing Size

330mm×205mm×65mm

Weight

N.W.：0.56kg    G.W.：0.82kg

Effective Radiation Area

48cm²

Display Mode

LCD Screen

Working Distance

3cm

Intensity

UVA

UVB

BU-1

--

0.3-20mW/cm²

Wavelength

UVA or UVB

Control Mode

Time control mode：0-30minutes. 10s countdown prompt function

Lamps

PHILIPS  medical lamps   H  1X9W

Lamp parameter

Type

UVA

UVB

Model

PL-S9W/10/2P

PL-S9W/01/2P

Power

9W

9W

Voltage

60V

60V

Electricity

0.17A

0.17A

Wavelength

320-400nm   peak:365nm

±3nm

280-320nm，peak: 311nm

±3nm
